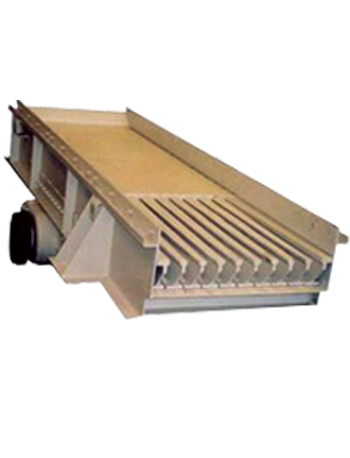

Grizzly Feeders

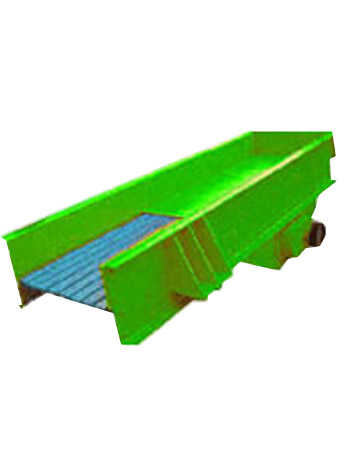

Vibrating Grizzly Feeders

Our organization is engaged in offering a wide range of Stone crusher Machine Grizzly Feeders, Industrial Feeder which is manufactured using superior quality raw material for ensuring longer functional life of the same. Offered feeder is used to feed primary jaw crushers. This feeder can easily crush large and medium size metals. These grizzly feeders have a large vibrating structure, which is made from the thick metal plate and consists inside lining of anti- rust & abrasive plates. Offered feeder works on the two or four vibrating motors.

Being a customer focused organization, we are offering a qualitative range of Stone Crusher Machine Vibrator Feeders. Offered vibratory feeder is a high frequency reciprocating machine of light duty. This feeder has the capacity of conveying bulk material from storage to processing at the controlled rate of flow. Vibrator feeders offered by us are widely used in the processing industries for handling damp, hot, abrasive and lumpy material. The offered feeders are comes in use for the following functions:

• Flow of material from storage
• Flow of material from proportioning
• Flow of material from blending
• Flow of material from packaging vibrating grizzly feeder




Sand Making Machines

Typically arranged below hoppers or stockpiles to ensure material reaches its destination with a consistent flow.
The rugged design and strength of the feeders ensure long life and continuous operation. Equipped with standard components to ensure easy spare part sourcing.

Available standard options including feedbox, needle gate, discharge chute, spillage chute.

Technical Specification

Model
Dimension MM
Capacity T /H
Power HP
YFD 2 X 6 MTR
600MM x 2000MM
10-40
5 HP
YFD 4 X 6 MTR
1200MM x 2000MM
40-60
7.5 HP
YFD 3 X 6 MTR
900MM x 2000MM
60-90
7.5 HP
YFD 3 X 12 MTR
1000MM x 4000MM
90-120
15 HP
YFD 4 X 12 MTR
1200MM x 4000MM
150-200
20 HP


Vibrating Grizzly Feeders


Yash feeders have been the heart of many crushing operations for over 10 years. In both large stationary plants or mobile crushing plants, we have the feeder for your application. The Yash feeders utilize high strength steels and high stroke vibrators to produce a high production to weight ratio for portable operations. Heavy duty Yash Simplicity feeders are designed for stationary plants with their massive frames and high output vibrator mechanisms. The Yash Simplicity feeders are offered in a broad range of sizes up to 86" (2184mrn) wide x 24' (7315mm) long. These can be customized with various grizzly sections to match customer needs.
